Description

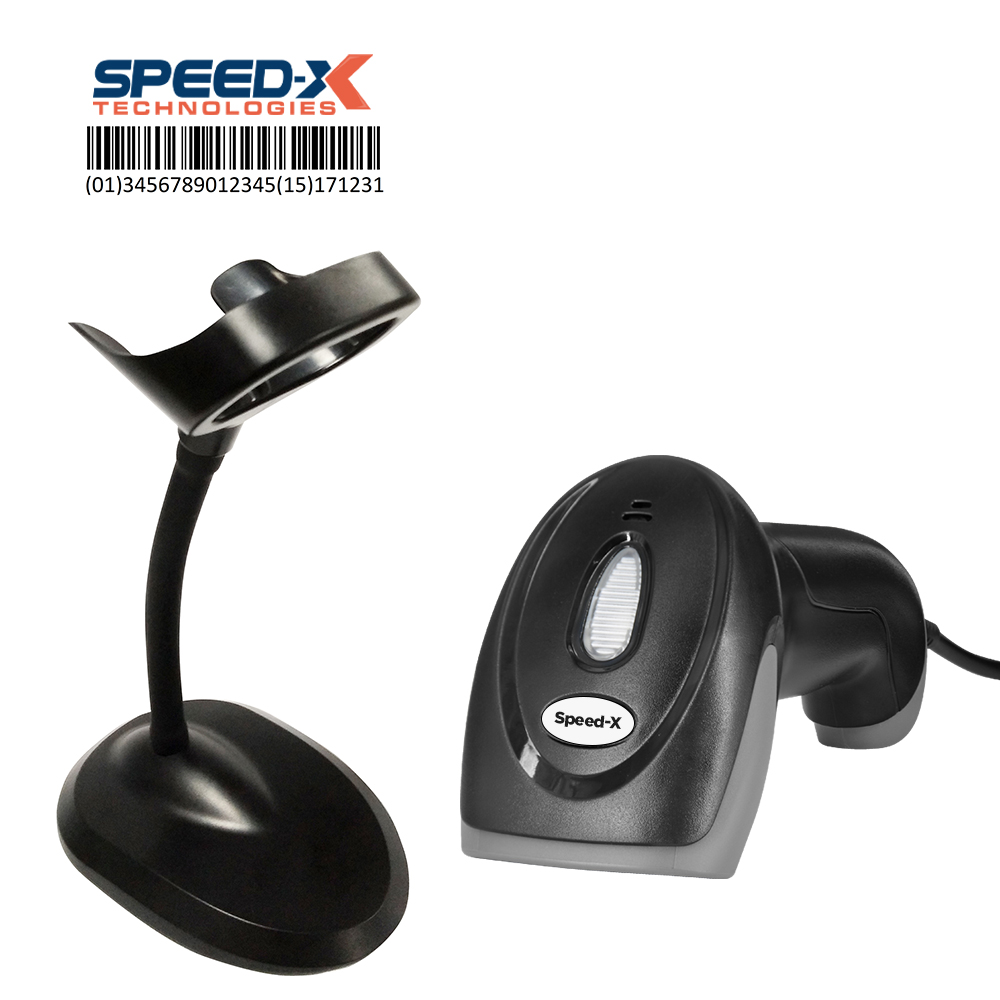

SPEED-X 8400 1D LASER HANDHELD BARCODE SCANNER (PLUG AND PLAY USB CABLE) –
Detail:
Product Specification
Electrical Characteristics
Interface Supported USB HID KEYBOARD/USB VCP or RS-232
Input Voltage DC 5V±5%
Current Max:185mA
Performance Characteristics
Light Source 650nm visible laser diode
Decoding speed 100±20/s
Scanning Angle Pitch angle:-30° to 0°,0° to +30°
Skew angle:-60° to 0°,0° to +60°
Tilt angle:-30° to 0°,0° to +30°
Min Resolution 1D : 4mils
Min .PCS value >30%UPC/EAN 13(13mil)
Decode Capability 1D:EAN13,EAN8,UPC A,UPC E,ISSN, ISBN, UPC-A ,
UPC-E , CODE39 , CODE32, CODE128, UCC-EAN128, CODE93, CODE11, CODABAR,
MSI, CROSS 25 CODE, CHINA POST 25 CODE, MATRIX 25CODE,
INDUSTRIAL 25 CODE, GS1 DataBar Omnidirectional, GS1 DataBar Limited
Environmental Characteristics
Temperature operation:0°C-50°C
storage:-10°C-60°C
Humidity operation:20%~85% (no condensation)
storage:20%~95%(no condensation)
Physical Characteristics
Dimensions 90mm x67mm x 168mm(L*W*H)
Weight 130g
Indicator Beeper, LED
Decoding Depth of Field
Symbology Resolution Barcode number Barcode width Nearest Farthest
Code128 5mil 20 4.3×1.5cm 5cm 10cm
Code128 15mil 7 4.3×1.5cm 2.5cm 26cm
Code39 6.67mil 16 4.4×1.5cm 3cm 19cm
Code39 20mil 4 4.3×1.5cm 3cm 32cm
EAN13 13.34mil 13 4.2×1.5cm 2cm 24cm
